Installing AhsayOBM on Synology NAS

For Windows Server Core, there are two (2) install methods available:

Online Installation - EXE Online Installer

  1. Use the following command to execute the installer:


PS C:\> C:\temp\obm-win-80-YOUR_BACKUP_SERVER-http-<OwnerID>O.exe

    Example: obm-win-80-10.121.100.16-http-0O.exe

    OR:


PS C:\> C:\temp\obm-win-443-YOUR_BACKUP_SERVER-https-<OwnerID>O.exe

    Example: obm-win-443-10.121.100.16-https-0O.exe

  2. When the "AhsayOBM Setup Wizard" is displayed, click Next to continue.

    wizard

  3. Select I accept the agremeent after reading the license agreement. Then click Next to continue.

    accept

  4. Choose the installation directory. Then click Next to continue.

    directory

  5. Select the program group where the software will be installed. Then click Next to continue.

    group

  6. Click Install to start installation.

    install

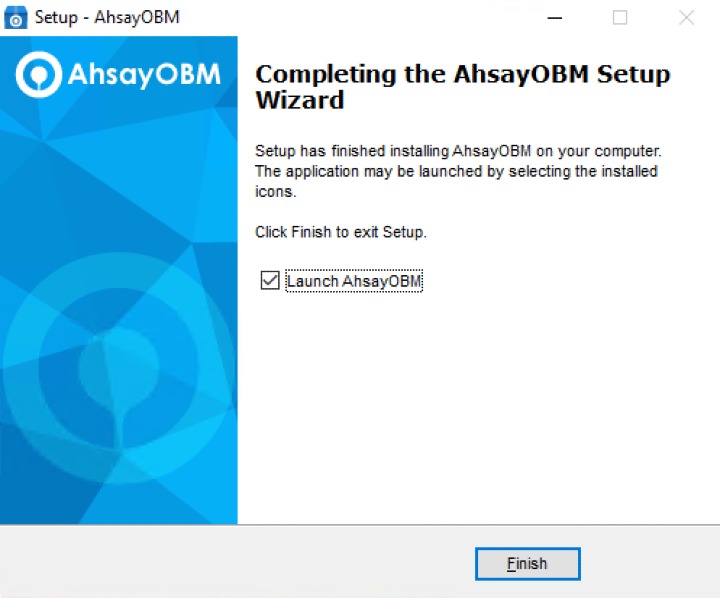

  7. Click Finish to complete the installation.

    finish

    Clicking Finish with ticked "Launch AhsayOBM" would complete the installation and start the AhsayOBM user interface directly.

Offline Installation - ZIP Offline Installer

  1. Use the following command to unzip the installation files to directory C:\temp\


PS C:\> Expand-Archive C:\temp\obm-win.zip C:\temp\

    archive

  2. Check the installation files are extracted.


PS C:\> dir C:\temp
    Directory: C:\temp
Mode                LastWriteTime         Length Name
----                -------------         ------ ----
d-----        1/27/2023  10:40 AM                app.pkg
-a----        1/27/2023   9:37 AM        3818256 obm-win.exe
-a----        1/27/2023   9:37 AM      222981332 obm-win.zip

  3. Use the following commands to execute the installer.


PS C:\> cd \temp
PS C:\temp> .\obm-win.exe
  4. Follow steps 2-7 in the previous section.
