Creating a MySQL Database Backup Set for Windows

1. Click the Backup Sets icon on the main interface of AhsayOBM.



2. Click the "+" icon before "Add new backup set" to create a new backup set.

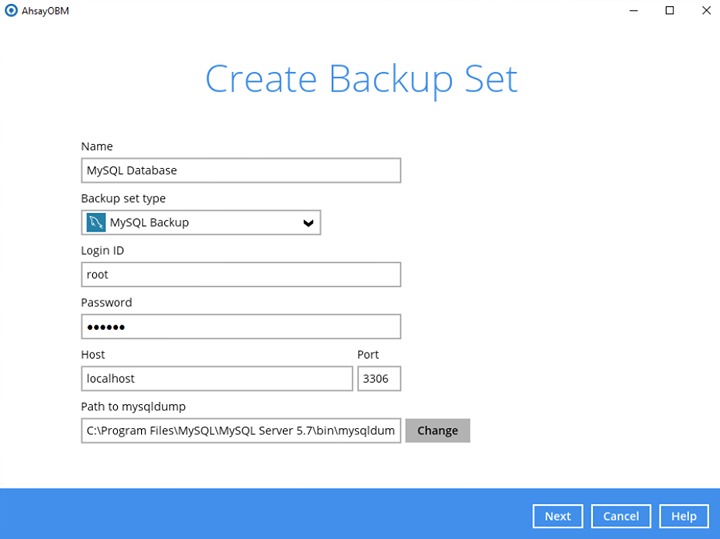

3. Select the "Backup set type" and name your new backup set. Enter the login information for the MySQL server then click Next to proceed.



4. In the "Backup Source" menu, select the MySQL databases you would like to backup. Click Next to proceed.



5. In the "Schedule" menu, you can configure a backup schedule for backup jobs to run automatically at your specified time interval.

   If enabled, to add the backup schedules click "Add" icon to modify additional backup schedule then click OK. Click Next to proceed.



   The default backup schedule is daily backup at 3:00 where the backup job will run until completion and the retention policy job will be run immediately after the backup job

   For details on how to configure the backup schedule settings, please refer to the Overview section (GUI).

6. Select a "Backup mode" and click "+" before "Add new storage destination / destination pool" to add a backup storage destination.



7. Select the backup storage destination. Click OK then Next to proceed.



   • If you have chosen the Local/Mapped Drive/Network Drive/Removable Drive option, click Change to select the storage destination. Tick This share requires access credentials if credentials are needed to access the directory path.



     Click Test to validate the path, "Test completed successfully" shows when the validation is done.



   • If you have chosen to store the backup files in another Cloud storage, click Test to log in to the corresponding cloud storage service.



   • If you have chosen FTP as the destination, enter the "Host, "Username" and "Password" details.



8. In the “Encryption” window, the default “Encrypt Backup Data” option is enabled with an encryption key preset by the system which provides the most secure protection.



   For details on how to configure the "Encryption" settings, please refer to the Overview (GUI) section.

   For best practices on managing your encryption key, refer to the following article:

   FAQ: Best practices for managing encryption key on AhsayOBM or AhsayACB

   Click Next when you are done setting.

9. If you have enabled the Encryption Key feature in the previous step, the following pop-up window shows, no matter which encryption type you have selected.



   The pop-up window has the following three optoins to choose from:

   • Unmask encryption key - The encryption key is masked by default. Click this option to show the encryption key.



   • Copy to clipboard - Click to copy the encryption key, then you can paste it in another location of your choice.
   • Confirm - Click to exit this pop-up window and proceed to the next step.
10. Backup set created.

    1. To start a manual backup job, click on Backup now



    2. To verify the backup set settings, click on Close and then click on the MySQL backup set to complete the setup.





11. Based on Best Practices and Recommendations, it is highly recommended to change the "Temporary Directory". Select another location with sufficient free disk space other than:


    			Drive C:\Users\Administrator\temp (e.g. D:\temp)


    Open the Backup set then go to Others>Temporary Directory. Click Change to browse for another location.



12. Optional: Select your preferred compression type. By default, the compression is Fast with optiomization for local.

    Go to Others>Compressions. Select from the following list:

    • No Compression
    • Normal
    • Fast (Compressed size larger than normal)
    • Fast with optimization for local
